| Brand Name : | JINWANG |
| Model Number : | JW-UCS-9 Coding Machine |
| Certification : | CE, ISO9001 |
| Price : | negotiation |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1 Osets per month |
| Delivery Time : | 15-90 work days |

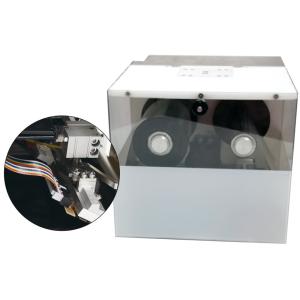

JW-UCS-9 Coding Machine AC 100~120V/220~240V
1. Introduction
This is an electric reciprocating automatic code printer; it is used for the color ribbon printing on the bag-packing machine. Automatic motor, non-contact switch trigger control, small size, easy installation, widely used in food, pharmaceutical and other industries.
2. Technical Parameters
| 1 | Type | Intermittent |
| 2 | Printing area | 107x107mm |
| 3 | Resolution | 300DPI 12 points/mm |
| 4 | Printing speed | 100-300mm/s *Actual production capacity may vary depending on product size, packaging material, etc. |
| 5 | Ribbon size | Standard 110mmX600m; maximum up to 110mmX1000m |
| 6 | Ribbon gap | 0.5mm adjustable |
| 7 | Software interface | RS232 standard industrial serial port communication, network communication; USB2.0 interface real-time data transmission |
| 8 | Hardware interface | Input: print trigger |
Output: It can output the printing completion signal, and can realize the signal output linkage of warning status and fault status. | ||
| 9 | User interface | Standard 7-inch color touch screen controller (equipped with USB2.0 interface and standard network interface) |
File editing does not require a computer, built-in template software, warning and fault information display, print preview function | ||
| 10 | Print body | Standard network interface and USB communication interface, can be directly controlled by computer |
Multi-language selection, different font selection, support windows true Type | ||
Support graphics, Chinese printing, serial number, user-defined text printing, real-time time, date, offset date printing, support dynamic printing of variable data, including dynamic barcode, dynamic QR code, dynamic Chinese or other characters | ||
| 11 | Size | 250x240x210mm(LxWxH) |
| 12 | Weight | ~9.0kg |
| 13 | Electrical requirements | AC 100~120V/220~240V |
Air source: Maximum 6.0Bar dry compressed air | ||
| 14 | Working environment | Temperature: 0~40℃; Humidity: 0~90% |
3.Equipment Advantages
3.1. Larger area printing
① The intermittent printing area reaches 107x107mm ② Breaking through the limitations of the traditional 53mm print head ③ Compared with similar products
Larger printing area
3.2. Modular design
①Simple structure and stable operation ②Easy maintenance and less maintenance ③No wearing parts
3.3.Dual motor ribbon drive technology
① Ensure the stability of the ribbon gap and save ribbon ② Ensure the ribbon tension is always consistent ③ Replace the ribbon
Add easy and fast
4.Specially designed built-in modules
①Editing software and computer software are two-in-one ②Reduce the customer’s editing time ③The software can be customized
|
